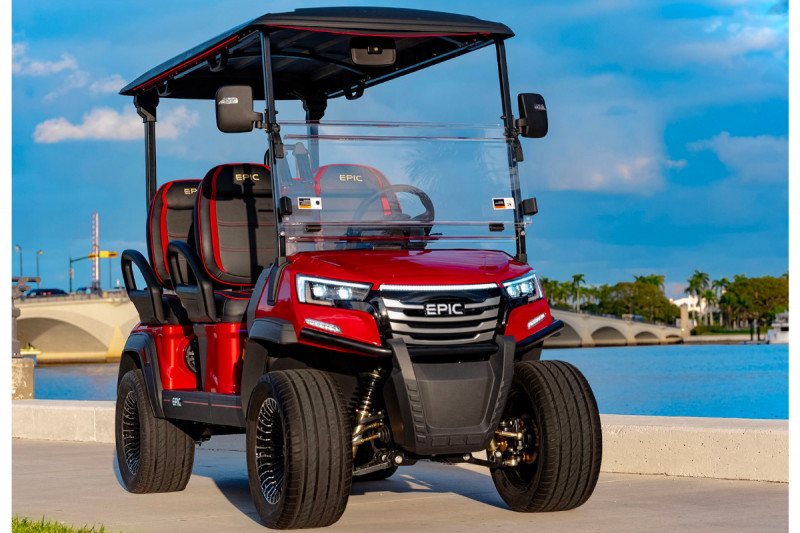

The brand new Epic E40FX is the best golf cart on the market today! Furnished with every imaginable feature, the forward-facing four-seater Epic E40FX comes in six stylish colors and two height options. Premium 14” wheels and street-ready tires provide a solid foundation for every journey on every terrain, no matter what lift height is selected. With an abundance of storage, superior built-in marine-grade sound system and speakers, and stunning accent lighting, this Epic E40FX golf cart illuminates the possibilities for fun and adventure.
Standard Features

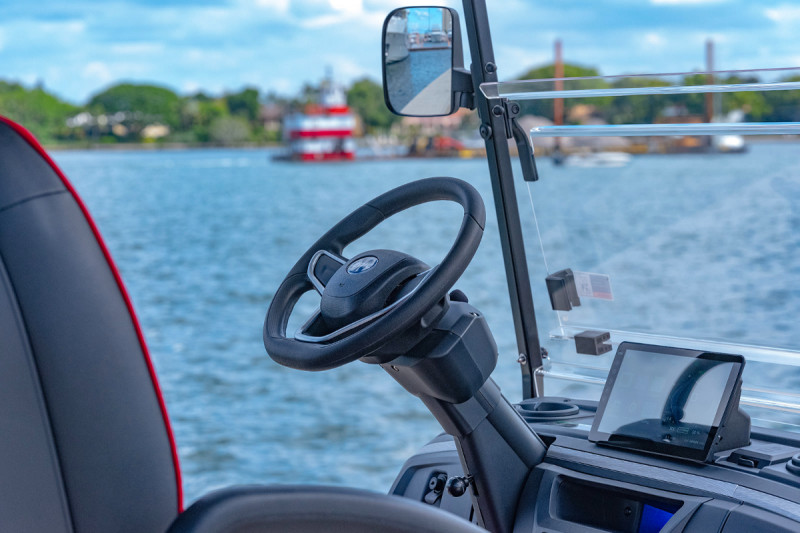

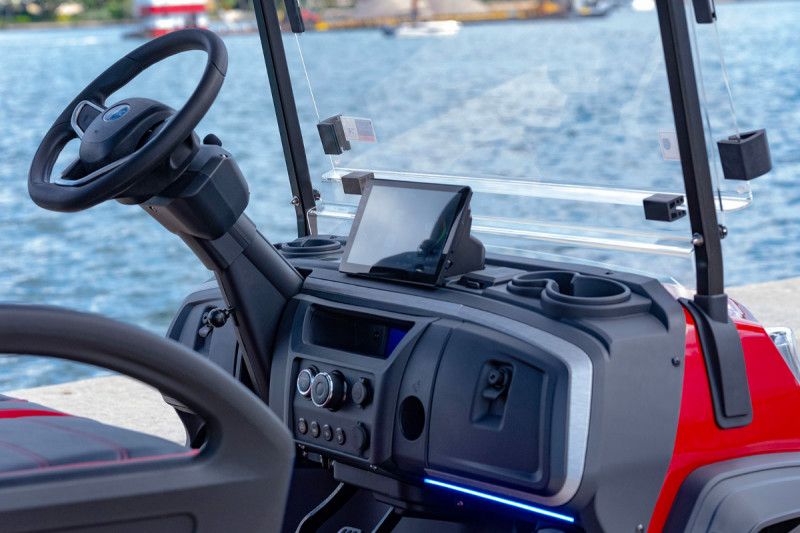

10.1” Digital Display Screen
Backup Camera

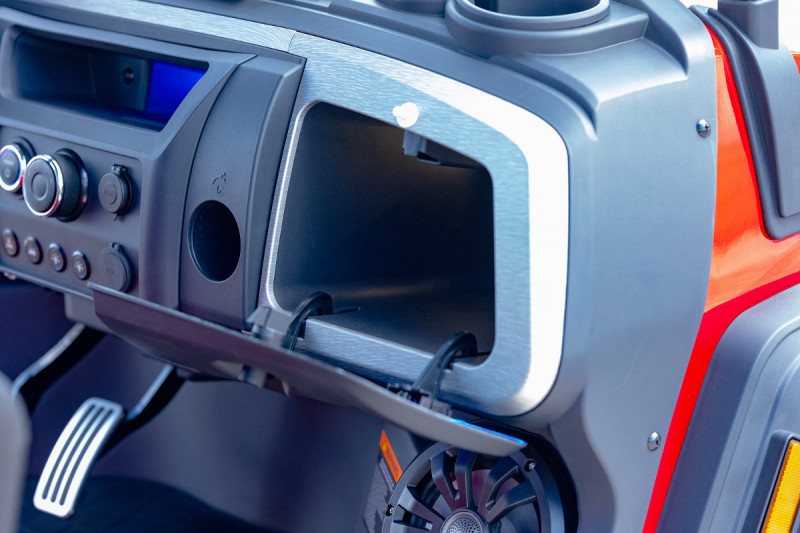

Locking Compartments
DOT Windshield

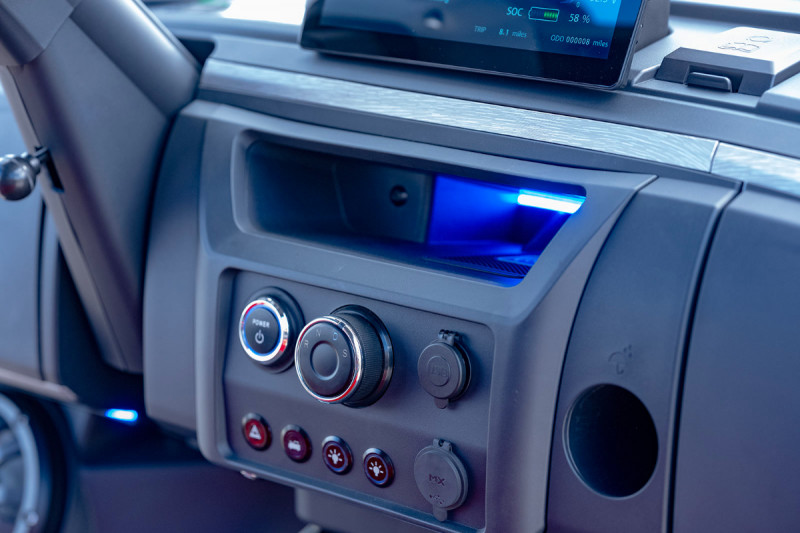

(x3) Dual USB Ports & Pre-Wired 12V Switches
Horn
Digital Gauges
Lit License Plate Bracket

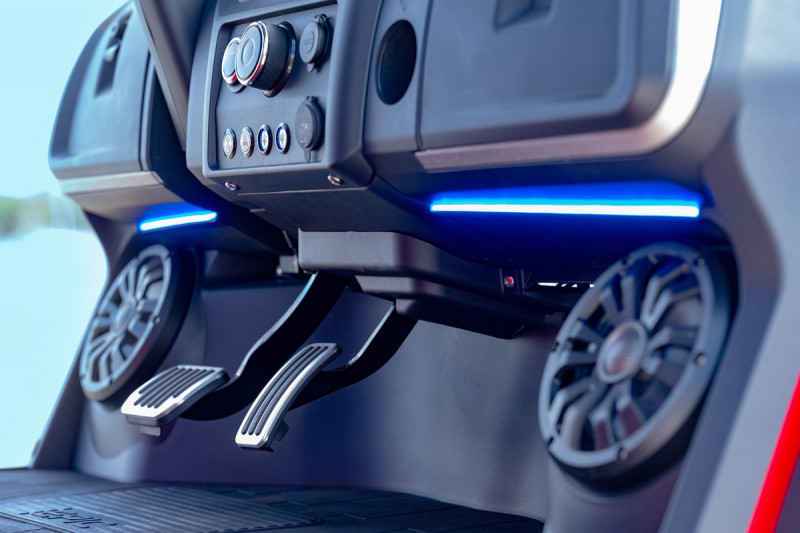

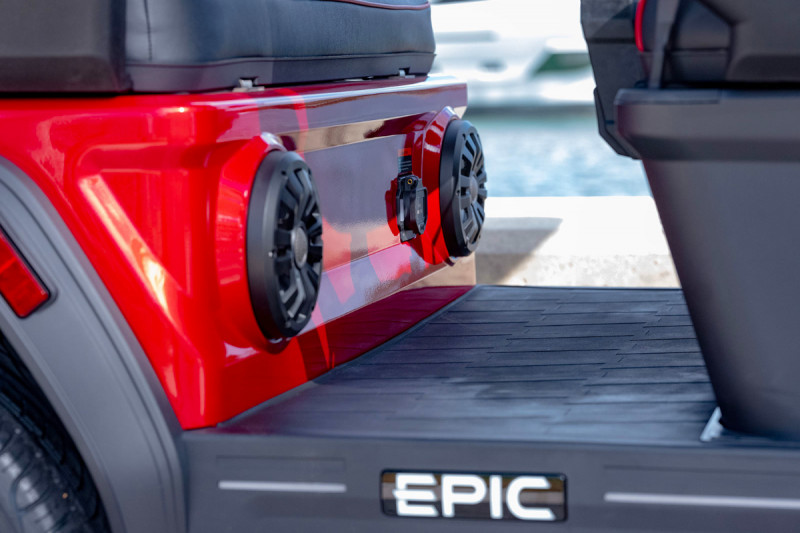

Built-in ECOXGear Marine Grade Sound System with 7.5A 360W & Four 6.5” Speakers

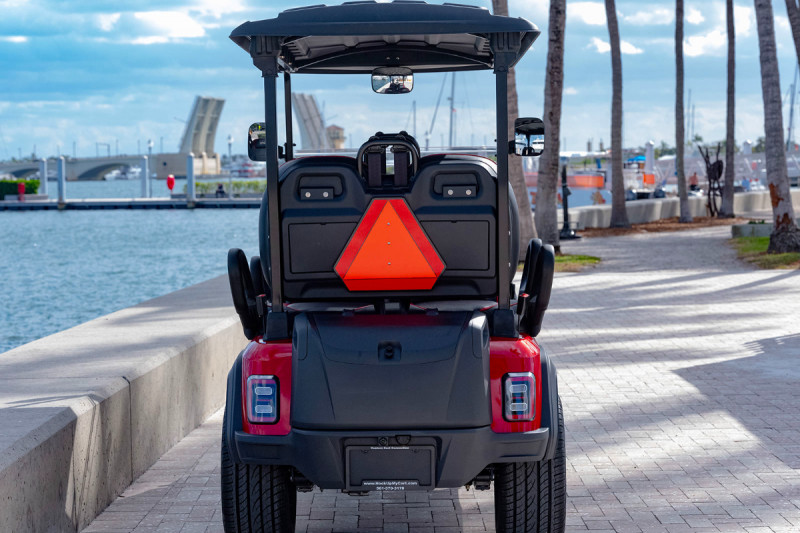

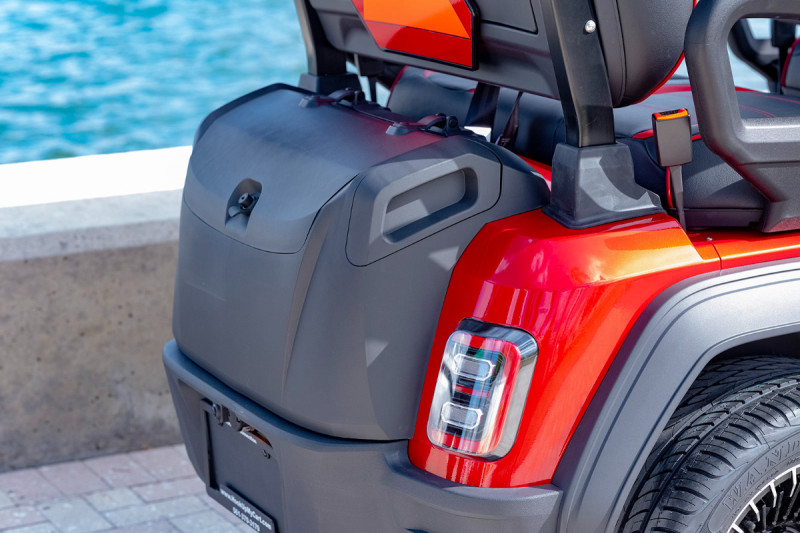

Removable & Lockable Trunk in Rear
Latched and Lit Frunk
Enclosure tracks (for easy installation)
Storage Tray Beneath Rear Seats
Wireless Cell Phone Charging Pad

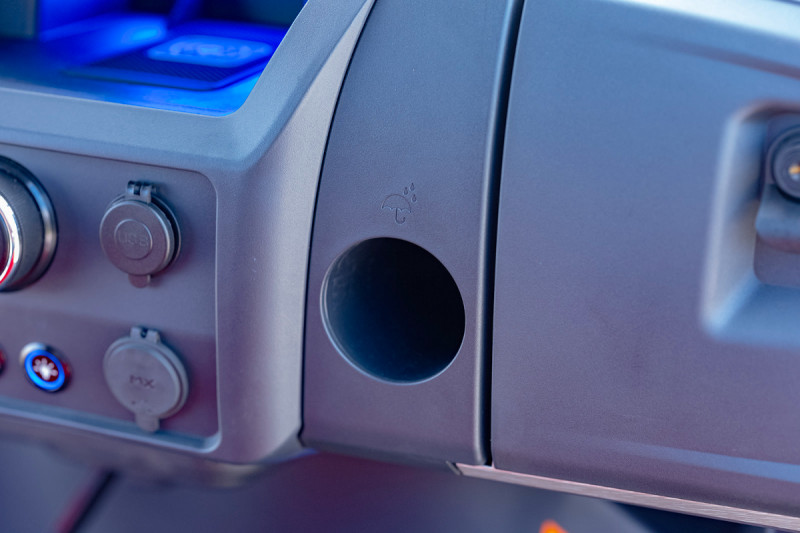

Umbrella Holder
Configuration

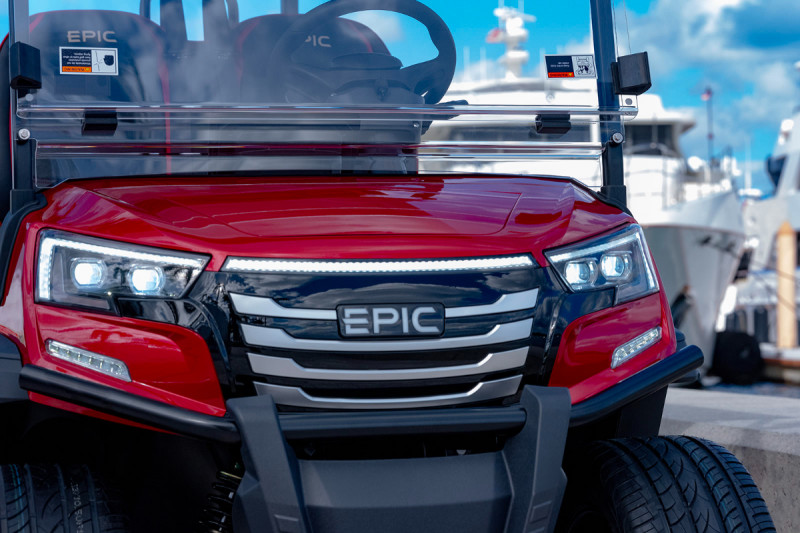

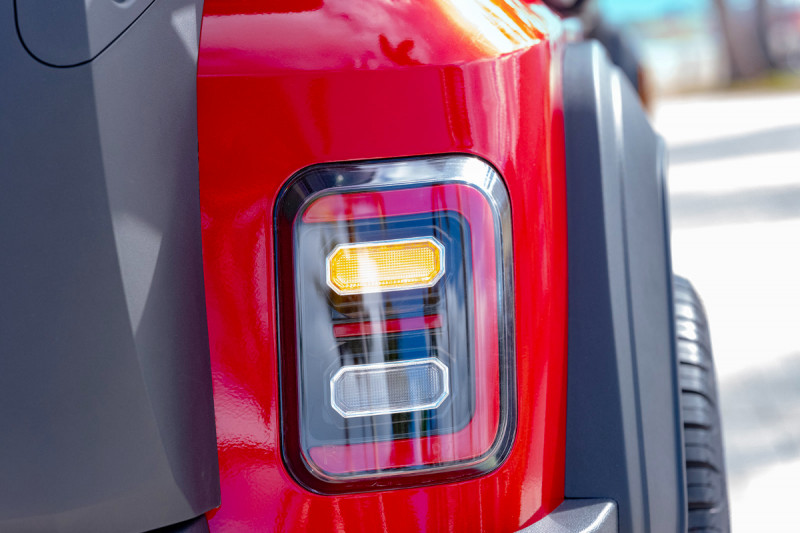

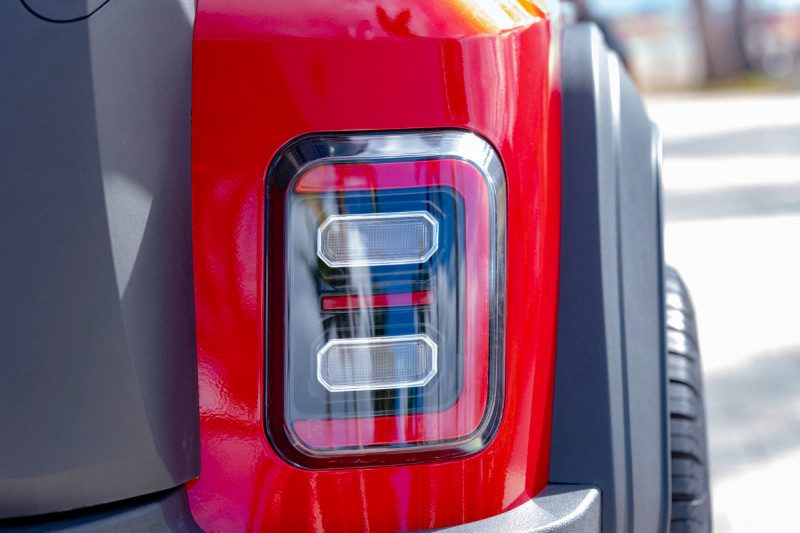

Full Light Package: Accent Lighting in Dash & Glove Boxes, Built-in Roof Lighting, Decorative Lit Trim Cover, Front Combination Lights, Low Lights, High Beams, Turn Signals, Daytime Running Lights, Charge Indicator Light, Tail Lights, Brake Lights, Back-up Lights, Charger Indicator Light, Lit License Plate Bracket
Safety: 3-Point Seat Belt Restraints, Rear Grab Bar, Reverse Buzzer, Charge Indicator, Back-up Camera, Gauges, Mirrors with Dual Sided Lit Turn Signals, Hazards, Horn

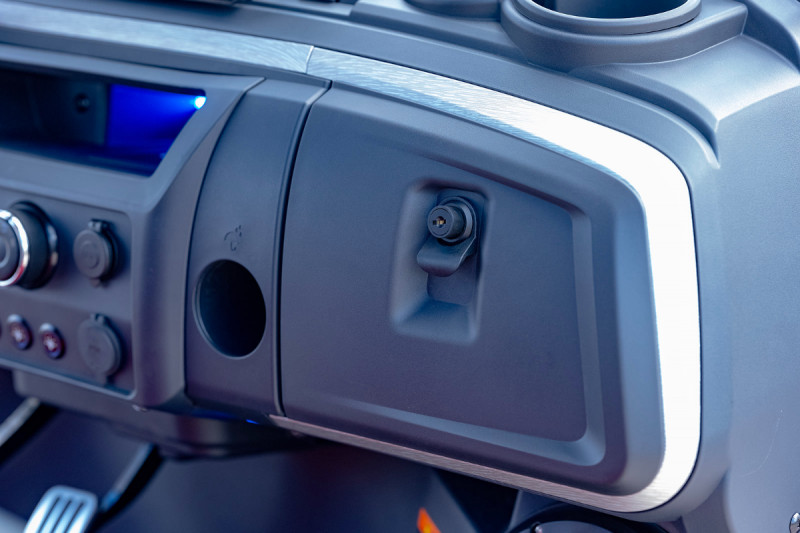

Storage - Removable & Lockable Trunk in Rear, Latched and Lit Frunk, Storage Tray Beneath Rear Seats, Locking Glove Compartments
Conquer the streets and the trails in style - the Epic E40FX is where luxury meets adventure!
Specifications
Specification
Weight |
1,215 lbs |
Capacity |
4 People |
Overall Dimensions LxWxH |
119”x56”x79.5” |
Electrical Systems
Battery |
51.2V /105Ah ECO Lithium |
Motor |
6.3kW AC Motor |
Controller |
450 A |
Charger |
48V On-Board Charging System with Body Mounted Charge Indicator |
Body Configuration
Frame |
Powder Coated Steel |
Body Material |
Injection Molded PP |
Wheels |

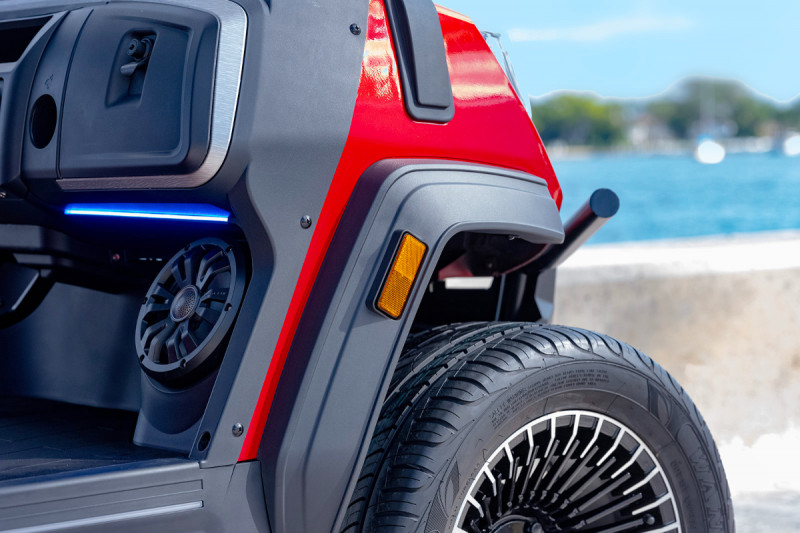

14” Aluminum Street Tires |
Min Ground Clearance |
5.91” |
Min Turning Radius |
141.73” |
Speed |
25 mph |
Max Climbing Capacity |
25% |
Braking System |

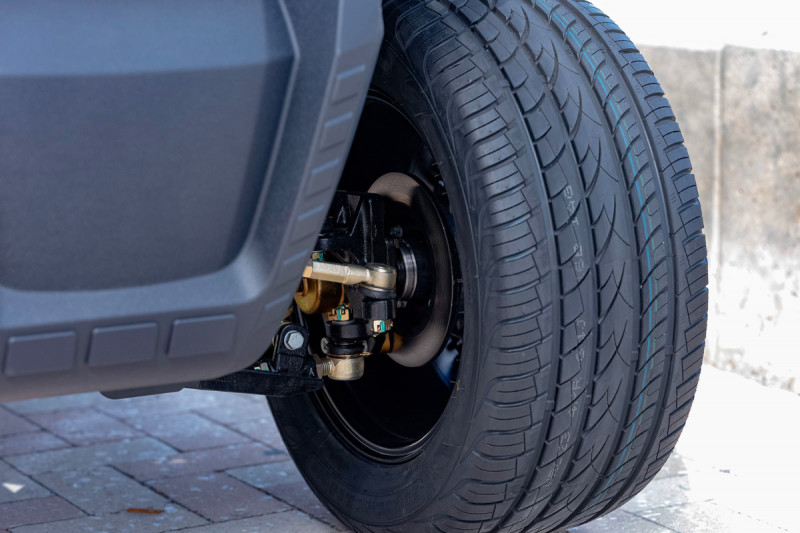

Four Wheel Disc Brakes, EMB Release Lever |
Mirrors |

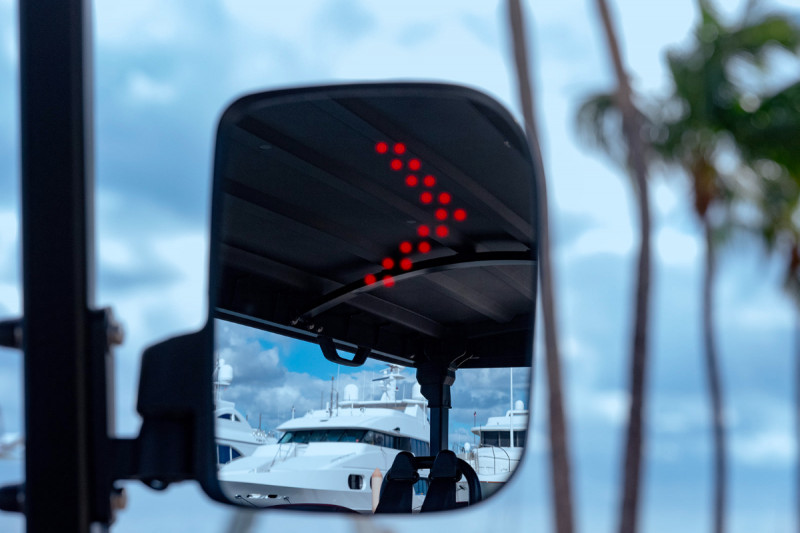

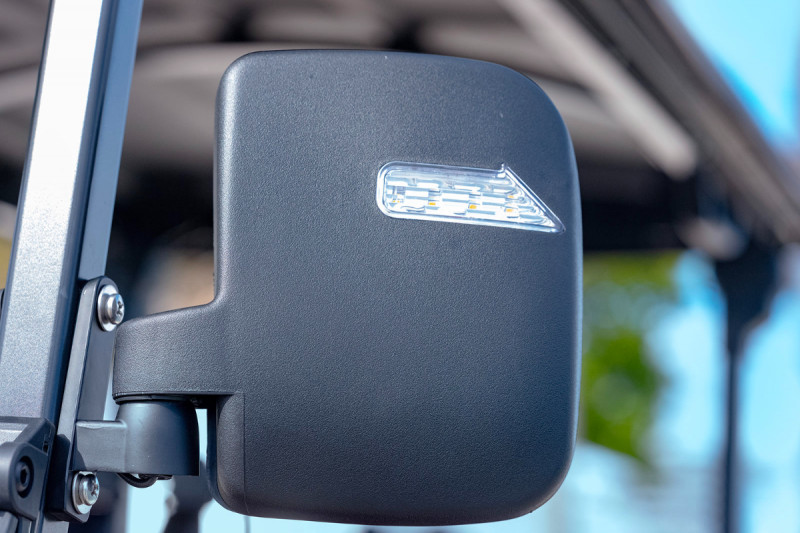

Foldable Lit Mirrors |
Rear |
High-Speed Rear Ends |
Suspension |
Double Wishbone Independent Front Suspension |
Bumpers |
Injection-Molded Insert with Steel Brush Guard |
Roof |
Injection-Molded PP - Black |
Seats |

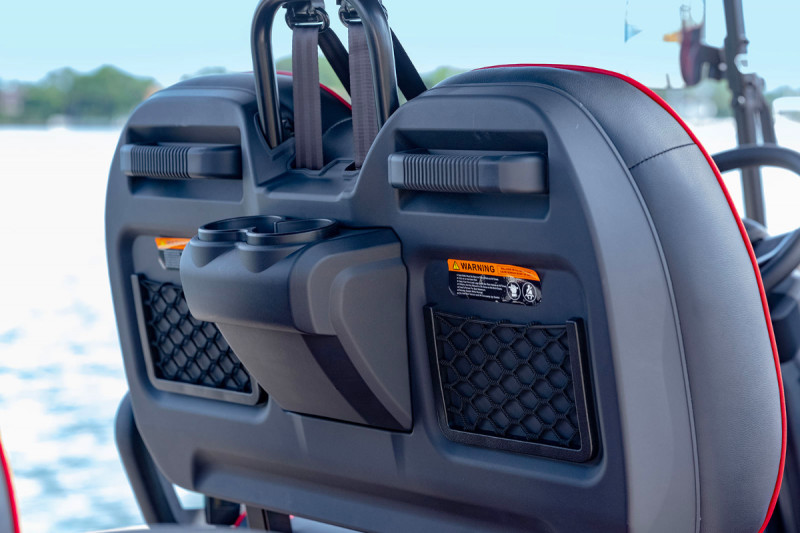

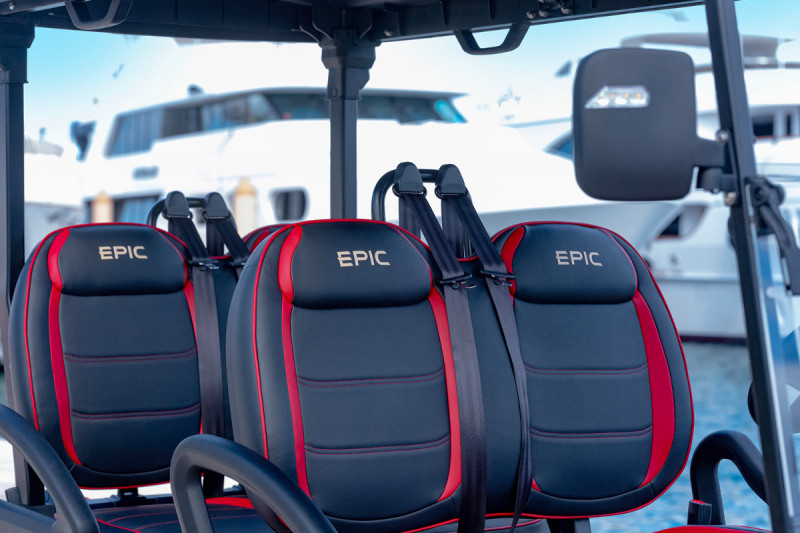

Custom High-Back Bolstered Seats w/Armrest & Rear Cup Holders |
Seatbelts |

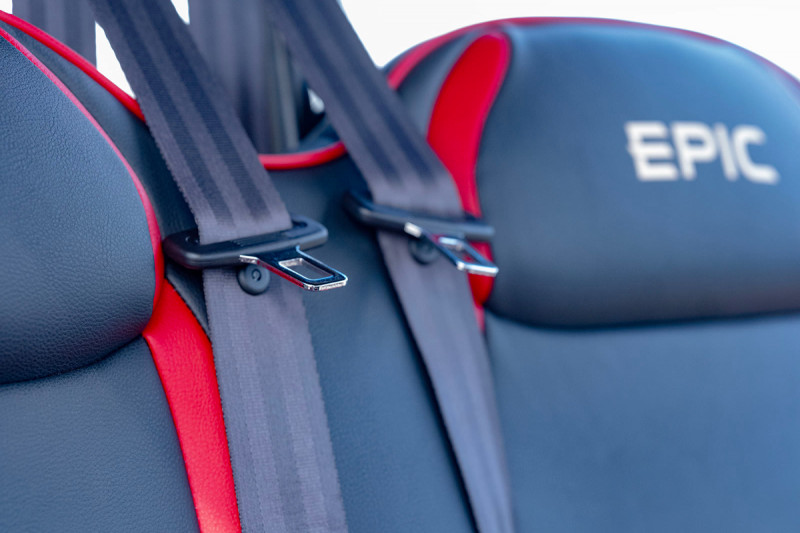

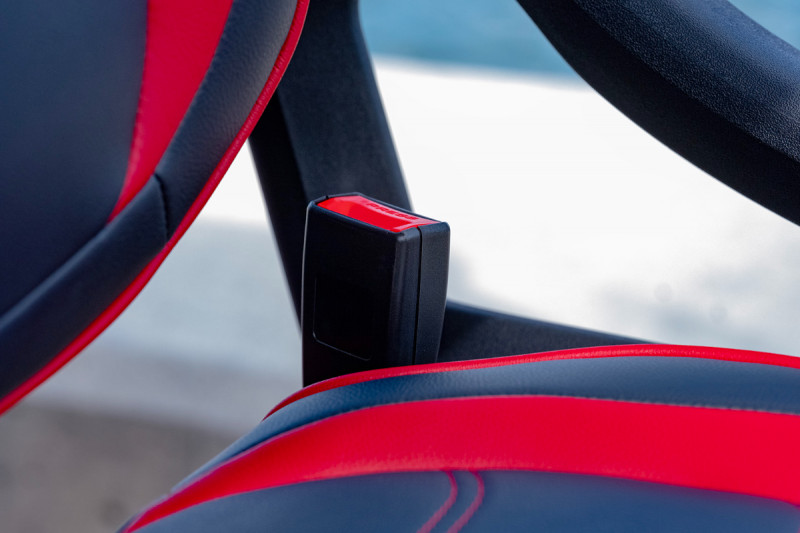

3-Point Restraints (x4) |
Accessories Available |
Dust Cover, Enclosure, Step Bars, Rear Golf Kit (x2 Coolers, x2 Sand Bottles, x2 Golf Bag Holders) |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
